Detail ROKEM ML-O155-06

????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

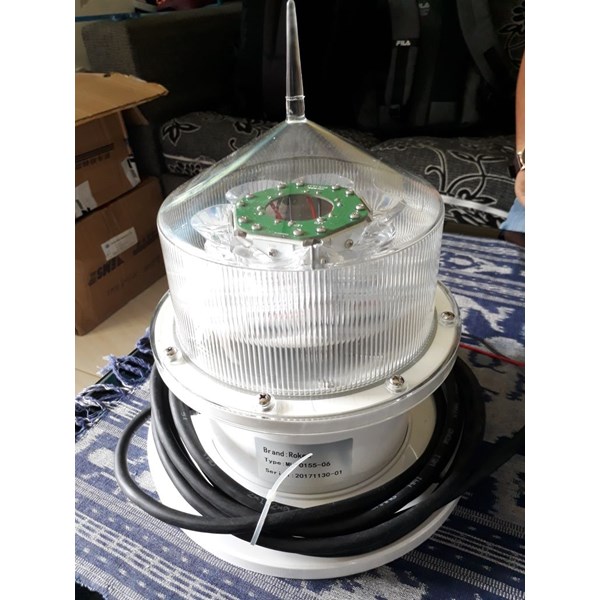

ML-O155-06 Lantern

ML-O155-06 lantern is a newly developed LED Marine Signal Lantern that has 3 intensity outputs

ranging 4, 5 and 6 nautical miles for site selection. ML-O155-06 lantern has characters of high

light output and long working life. The lantern is widely used on light buoys and beacons at sea.

Features & Benefits

○ Supper bright LED save energy ○ Patent optic design insure high light efficiency

○ High horizontal intensity uniformity ○ Computer chip control achieve high reliability

○ Line controller set range and rhythm / No need to open lantern ○ UV resistant PC for lens

○ Aluminium alloy base with special treatment suits marine environment

○ Pass EMC test

○ Light weight and easy installation

Specifications

○ Light source: Supper bright LED

○ Input voltage: DC12V (10~16V)

○ Vertical divergence: ≥7.5° (I50%)

○ Sun switch: 250±50 lx

○ Flash rhythm: 256 rhythms site selectable

○ Idling current: ≤4mA

○ Temperature: -35℃～+55℃

○ Protection: IP67

○ Dimension: Φ240×285mm

○ Installation: 3 and 4-Φ17 on 200mm bolt circle

○ Weight: 5kg (include 5m cable)
